Square Drive Series

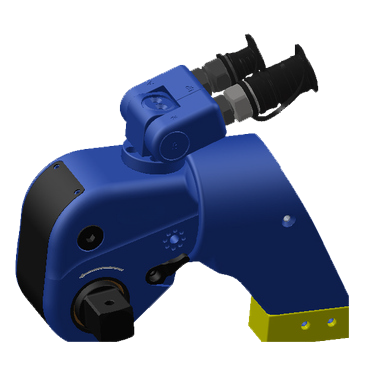

HT Series — Square Drive
The Hi-TON HT Series hydraulic torque wrench features a lightweight TITAL 399 alloy body, 360×180° hose swivels, 60-point adjustable click-on reaction arm, anti-backlash pawl and bigger tooth design. Square drive sizes from ½" to 3½" with HSQ-SA super alloy available for heavy duty applications.
- TITAL 399 alloy lightweight body
- 360×180° hose swivels
- 60-point adjustable reaction arm
- Anti-backlash pawl
- Square drives: ½" to 3½"
- ±3% output accuracy
164 – 69,247 Nm
10 Models
HSQ-02 to HSQ-70
±3% Accuracy
Technical Specifications
| Specification | HSQ-02 | HSQ-05 | HSQ-08 | HSQ-10 | HSQ-15 | HSQ-20 | HSQ-25 | HSQ-35 | HSQ-50 | HSQ-70 |
|---|---|---|---|---|---|---|---|---|---|---|
| Square Drive | 3/4" | 1" | 1½" | 1½" | 1½" | 2½" | 2½" | 2½" | 2½" | 2½" |
| Torque Min–Max (Nm) | 164–1,760 | 433–4,332 | 742–7,420 | 1,015–10,430 | 1,509–15,090 | 1,940–19,409 | 2,504–26,447 | 3,309–34,626 | 4,741–47,414 | 6,925–69,247 |
| Accuracy | ±3% (all models) | |||||||||
| Weight (kg) | 2 | 4 | 7 | 10.6 | 12.9 | 20 | 25 | 33.8 | 43 | 52 |
| L1 (mm) | 130 | 170 | 202 | 228 | 237 | 273 | 287 | 323 | 351 | 376 |
| H1 (mm) | 52 | 70 | 81 | 90 | 100 | 110 | 120 | 138 | 153 | 162 |
| R (mm) | 25.8 | 34.8 | 39.8 | 46.8 | 50.8 | 56.8 | 59.8 | 70.8 | 76.8 | 78.8 |
